ROP-415 | OEM/ODM Customized Logo RO Purifier Water Filter System, 5-Stage 50 GPD Manifold Under Sink Machines with Pump, Parts are NSF certified

Item No:ROP-415

SHARE:

  • Manifold type plastic bracket (built-in tube)
  • Five stages filter cartridges
  • With booster pump/transformer(110V or 220V 24VDC)
  • With shuttle valve
  • In-line filter, R.O. membrane, and storage tank are NSF certified
  • Capacity: 50gallons per day
  • Waste water ratio: 1:3
  • Flow rate : 1.5 liters/min
  • Applicable Pressure:≦50PSI
  • Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
Color
Dim.
L37xW19xH46(cm)
Quantity
Min. order>pcs
Request
Feature
  1. Built-in tubes plastic bracket to prevent rusting and water leak. This also shorten 3cm heights of RO system.
  2. Using magnet wired transformer to stabilize voltage, ensure durability and keep from overheating
  3. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak
  4. The system passed 100,000 times cycle test under 150 PSI water pressure
  5. Functional components also passed cycle and burst test which conform to NSF test protocol
  6. Water contact components are produced with all raw materials
  7. 100% leak test before delivery
  8. Lighter weight and easy to carry

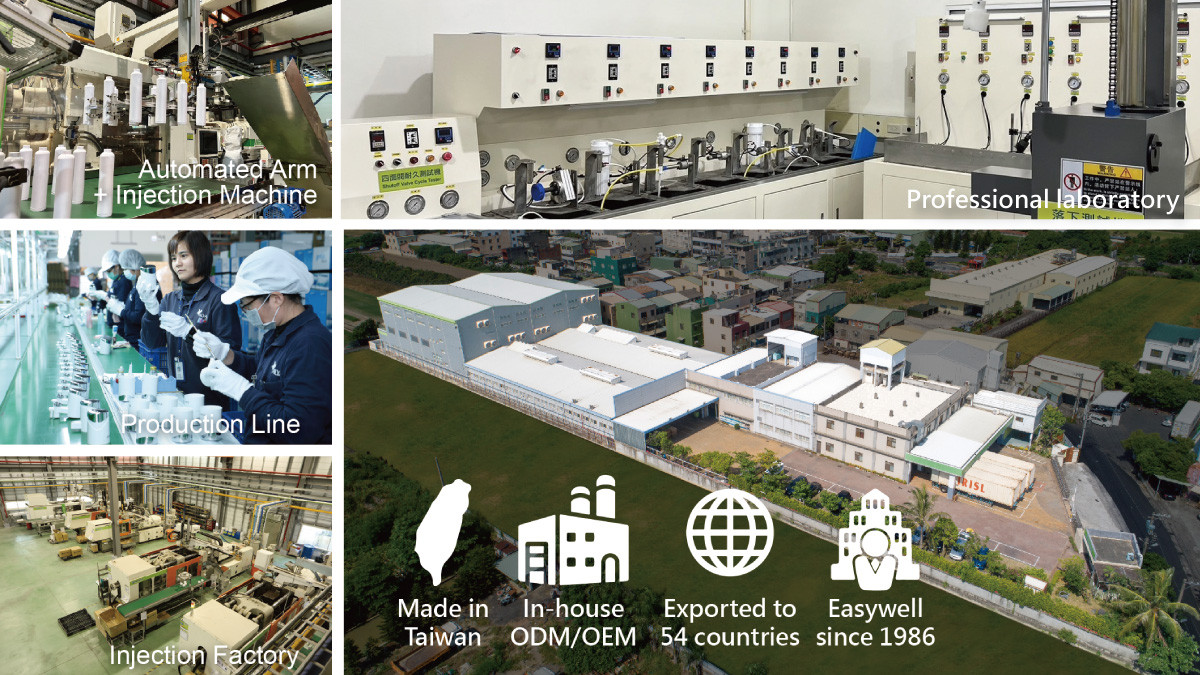

  9. Made in Taiwan





RO SYSTEM ENAMELED WIRE TRANSFORMER

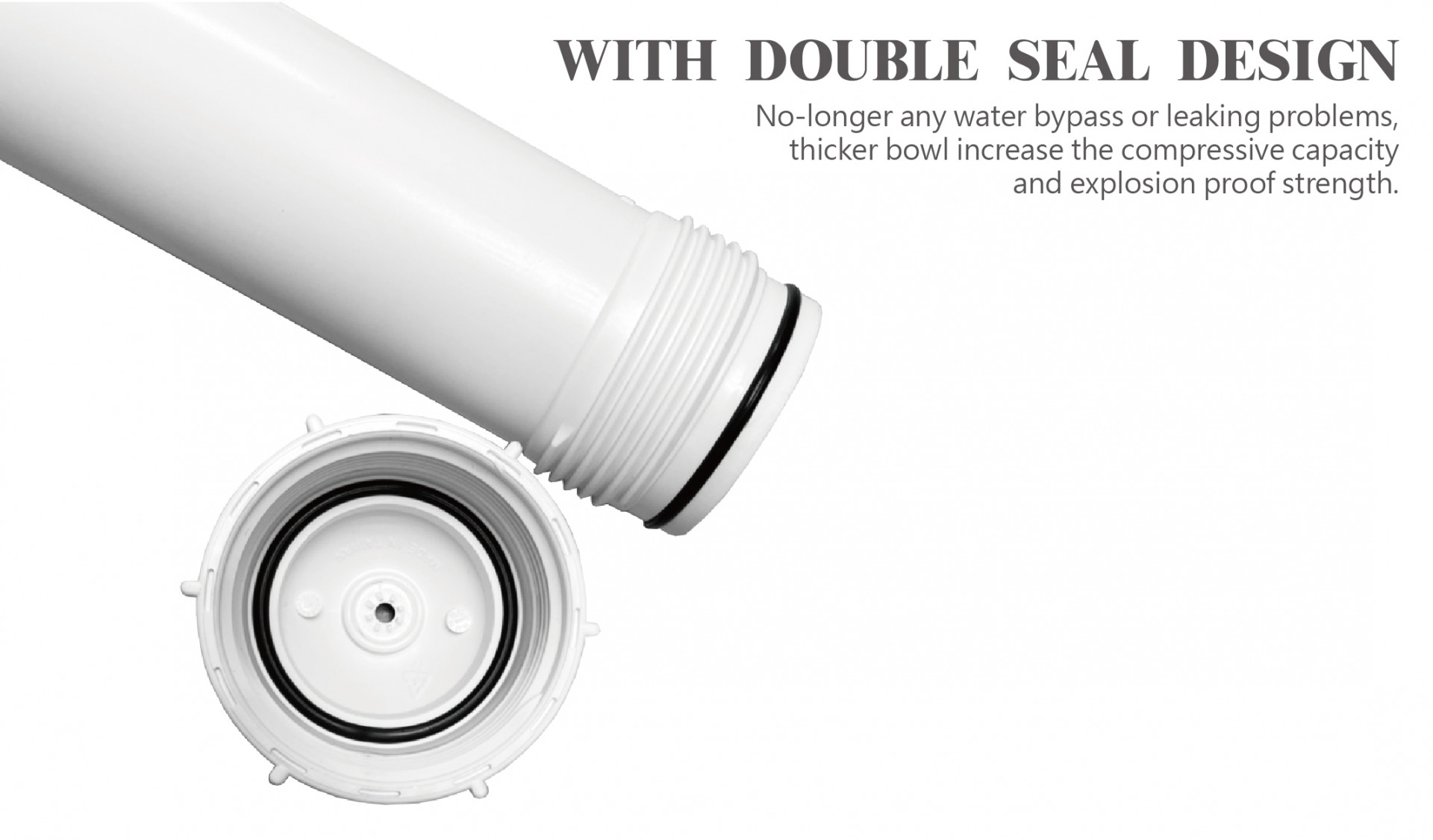

RO SYSTEM WITH DOUBLE SEAL DESIGN

RO SYSTEM QUALITY CONTROL

RO SYSTEM 100% PURE RAW MATERIAL INJECTION



ITEMS

ROP-415

Cartridge Stages

5 Stages

Booster Pump 50GPD 24VDC
Transformer 100~240V,24V,1.5A
Cartridge Type 9-7/8" Standard Filter
Membrane(gallon) NSF

50/75/100GPD (NSF) Optional

Shutoff Valve 1/4"FIP
Less Drain 1:3
Water Output Flow  1.5LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

4Gallons

Applicable pressure ≤50PSI
Dimensions (w/o tank) L370xW190xH460 (mm)
Weight 11KG
Specification
Model No. Fitting Type flush valve Weight (incl. tank) Cu'ft
ROP-415 JACO NO 13.5 kgs 2.92 cu.ft.
ROP-415R Quick fitting (E-Z) NO 13.5 kgs 2.92 cu.ft


Cartridges:

Stage Model No. Media Function
1st PP10-05 PP sediment, 5 µ Remove dirt, sand and other sediment
2nd CBC-5CTO Carbon Block Reduce chlorine, taste & odor
3rd PP10-01 PP sediment, 1 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water



ITEMS

ROP-415

Cartridge Stages

5 Stages

Booster Pump 50GPD 24VDC
Transformer 100~240V,24V,1.5A
Cartridge Type 9-7/8" Standard Filter
Membrane(gallon) NSF

50/75/100GPD (NSF) Optional

Shutoff Valve 1/4"FIP
Less Drain 1:3
Water Output Flow  1.5LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

4Gallons

Applicable pressure ≤50PSI
Dimensions (w/o tank) L370xW190xH460 (mm)
Weight 11KG




Assembly

Spare parts Model No. Spec.
Housing HA1014WW-C 10" White, with 1/4" NPT
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW (NSF) 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Quarter-turn spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color

Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
Wrench HAN-01W Plastic White
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco



Package

Carton box type Packing
Standard Export Carton System and tank are packed seperated

Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT PCS
40ft 2,385 CU'FT PCS
40'HQ 2,690 CU'FT PCS




Others

  • Quick-fitting type system is optional
  • Manual flush valve is optional
Certificates
Verification Of Conformity With European LVD Directive-(ROP-415) Patent:M336818(Taiwan)-(ROP-415) Patent:1117128(China)-(ROP-415)
