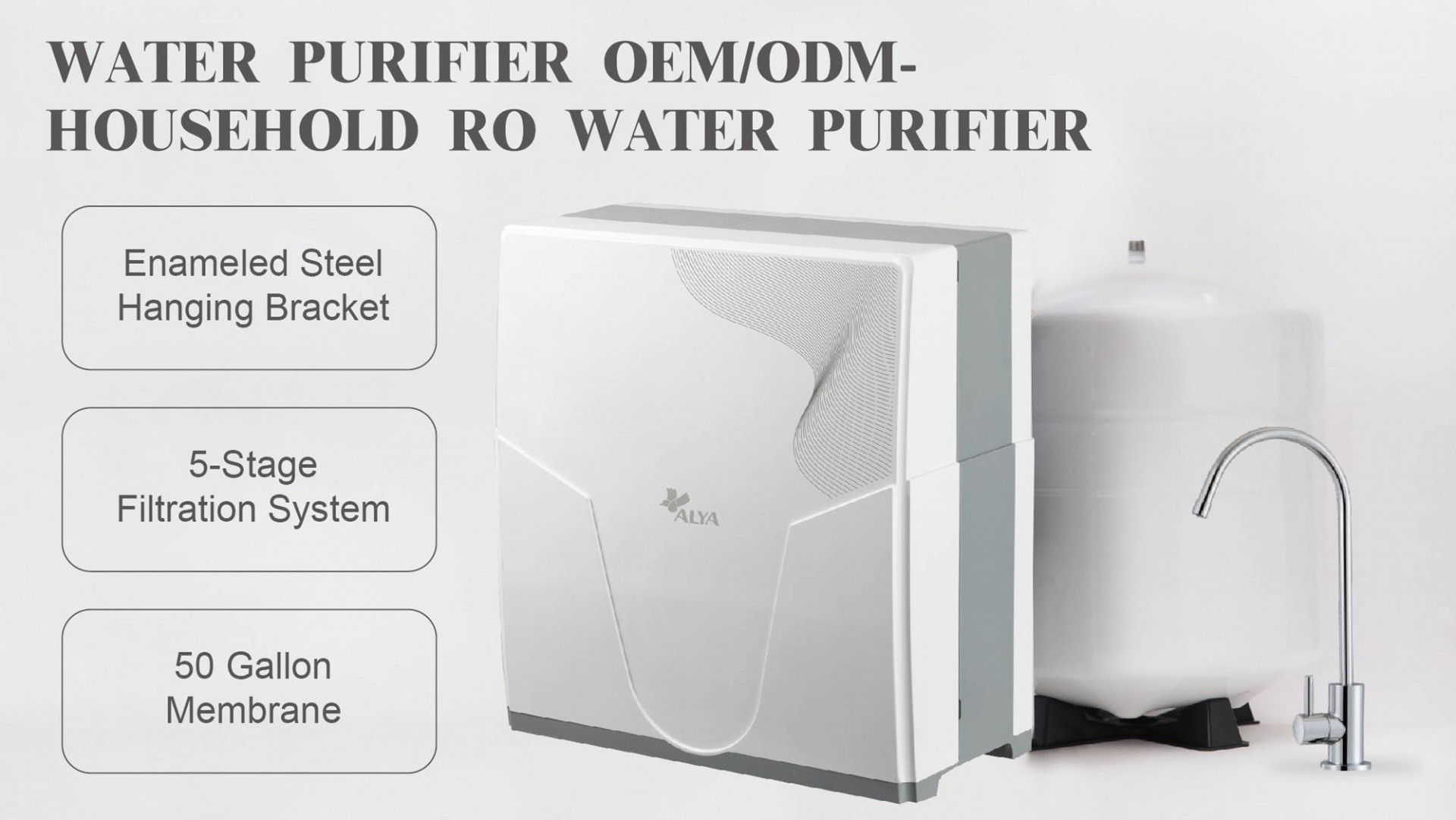

COMPACT R.O.

Item No:RO-710

SHARE:

  • Under-sink type

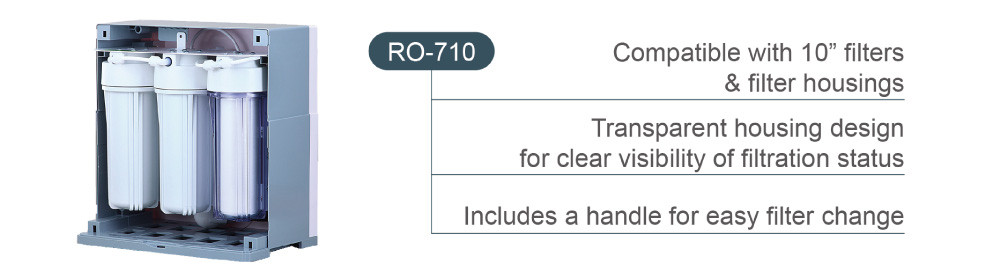

  • Five stages 10" standard filter cartridges
  • With booster pump/transformer(110V or 220V 24VDC)
  • With shuttle valve
  • Capacity: 50gallons per day
  • Waste water ratio: 1:3
  • Flow rate : 1.5liter/min
  • Applicable Pressure:≦50PSI
Dim.
L38xW25xH41 (cm)
Quantity
-
+
Min. order>pcs
Request
Feature
  1. Compact box design,the internal structure is 100% made of ABS plastic steel structure, no risk of rust
  2. Tool not required to open front panel, easy to replace filter
  3. In-line filter, R.O. membrane, drinking faucet and storage tank through NSF Certification.
  4. Using the Magnet Wire transformer to ensure stable voltage,
  5. The membrane housing has double O-ring design to ensure durability and no leakage

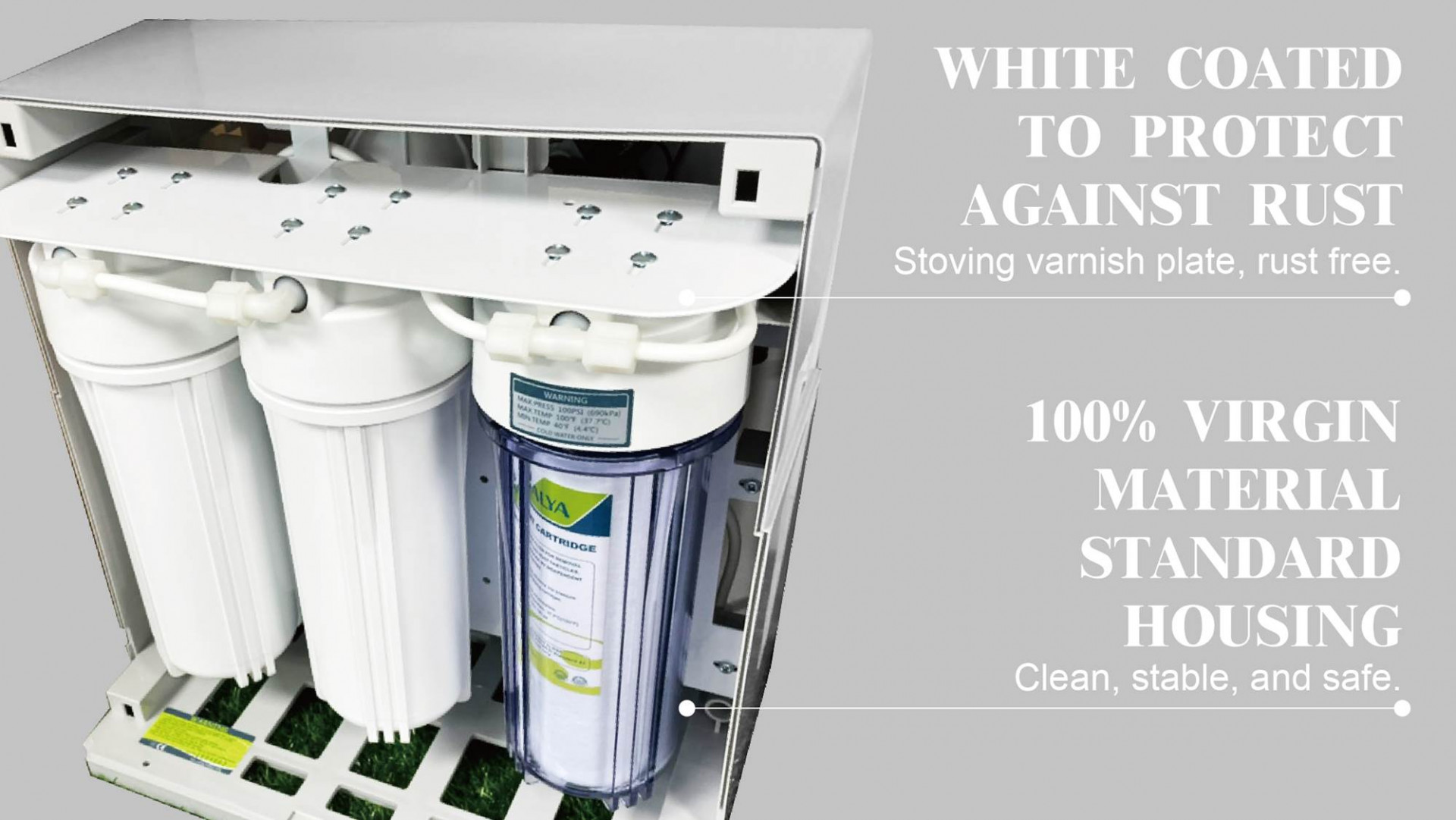

  6. Powder steel plate coating, it is not easy to rust

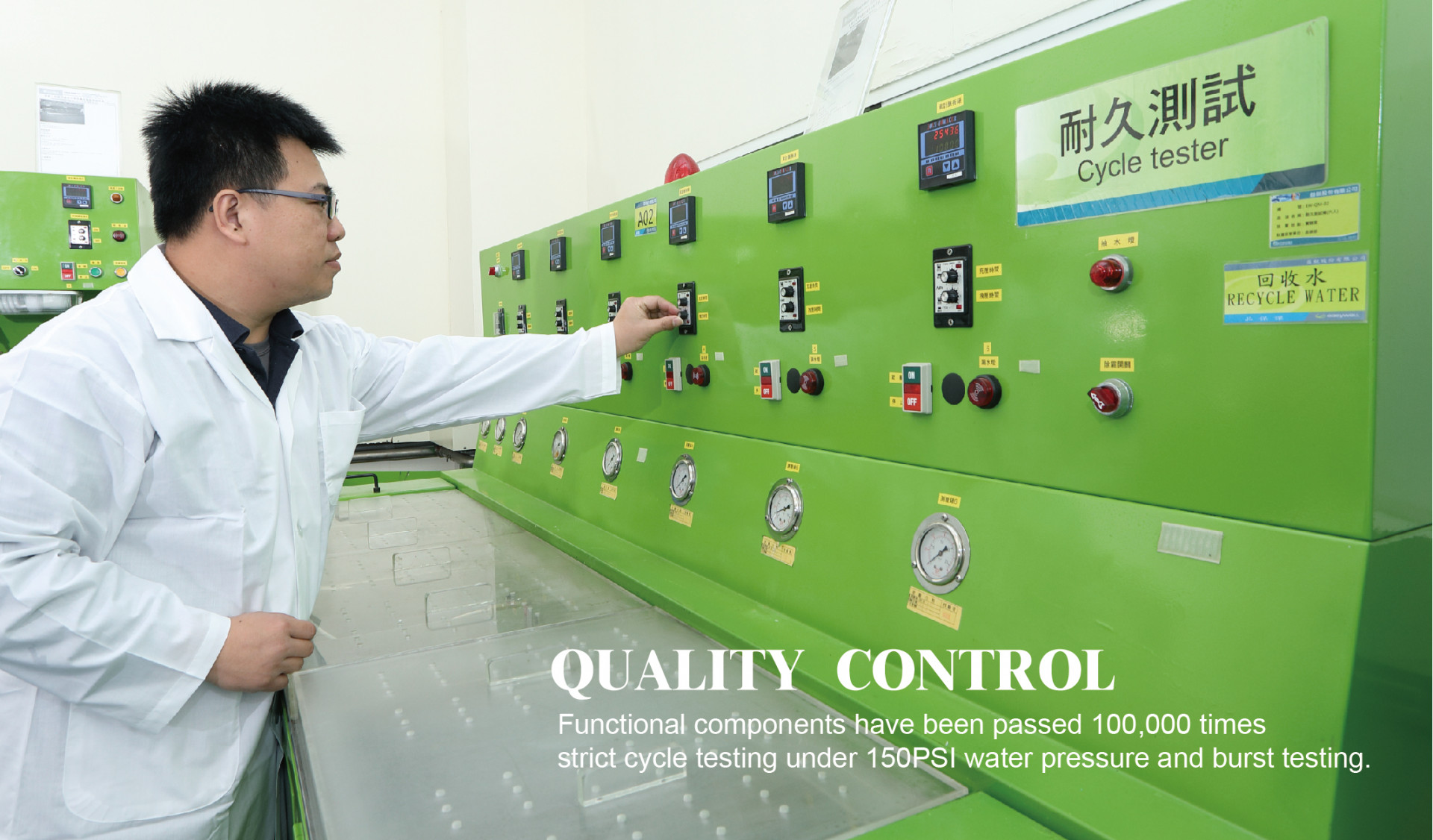

  7. Completed set & functional components have been passed 300 PSI (15 minutes)~500 PSI (instantaneous) burst test & 100,000 times cycle test under 150 PSI water pressure(conform to NSF test criteria)
  8. 100% pure raw materials for spare parts contacted water.

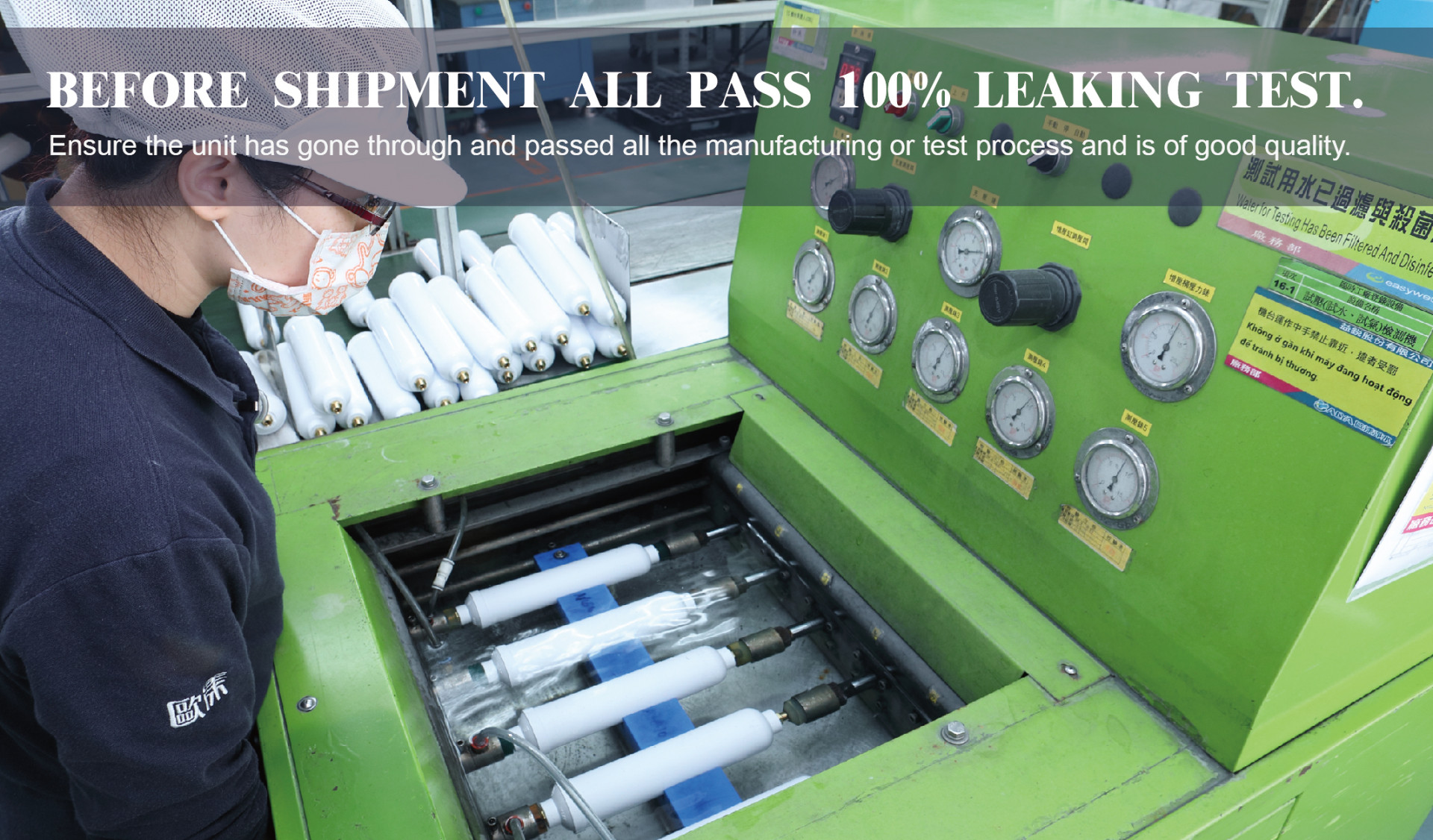

  9. Before shipment all pass 100% leaking test
  10. Made in Taiwan

Specification
Model No. Fitting Type Weight (incl. tank) Cu'ft
RO-710 JACO 13.5 kgs 2.92 cu.ft.



Cartridges:

Stage Model No. Media Function
1st PP10-05 PP sediment, 5 µ Remove dirt, sand and other sediment
2nd CBC-5CTO Carbon Block Redue chlorine, taste & odor
3rd PP10-05 PP sediment, 1 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water


Assembly

Spare parts Model No. Spec.
Housing HA1014WW-C 10" White, with 1/4" NPT
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW (NSF) 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002(NSF) 8" tall spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
Wrench HAN-01W Plastic White
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco


Package

Carton box type Package
Export standard carton box System and tank are packed seperated


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 270PCS
40ft 2,385 CU'FT 540PCS
40'HQ 2,690 CU'FT 620PCS




Others

  • Quick-fitting type system is optional
  • Manual flush valve is optional
