HM-253 | OEM/ODM Polypropylene RO Membrane Housing for RO Systems, With 1/8"NPT & 1/4"NPT & 1/4"EZ connect cap, Made In Taiwan

Item No:HM-253

SHARE:

  1. 1/8"NPT & 1/4"NPT & 1/4"E-Z  connect cap available
  2. Material: Polypropylene
  3. Weight:313g
Color
Dim.
Quantity
Min. order>pcs
Request
Feature
  1. 1/8"NPT & 1/4"NPT & 1/4"E-Z  connect cap available
  2. 100% pure raw material injection
  3. PP white housing have been done 100,000times strict cycle test under 150PSI high water pressure.
    (conform to NSF test criteria)
  4. Made in Taiwan

HOUSING OPTIONAL

HOUSING OPTIONAL

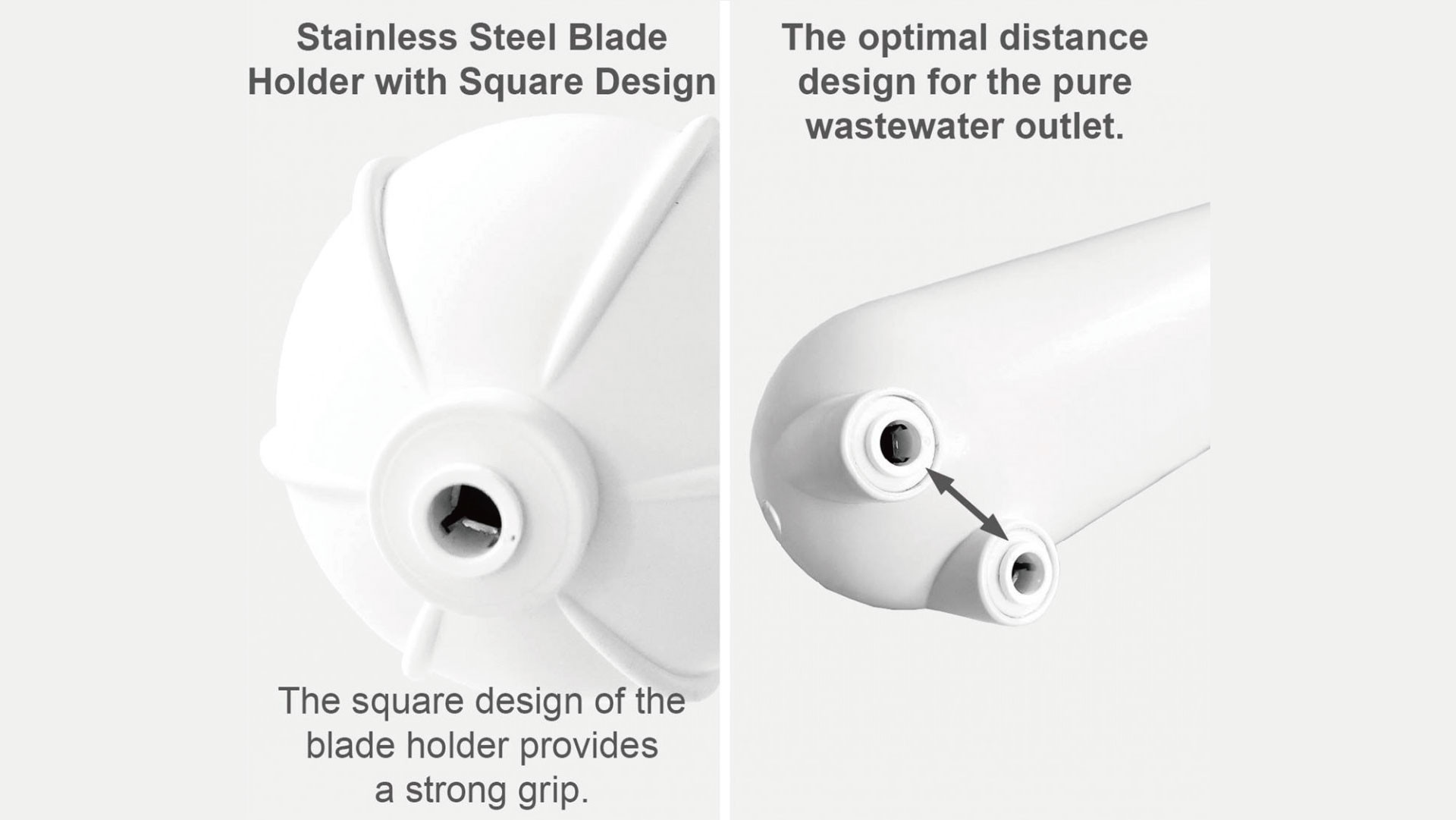

HOUSING OPTIMUM DISTANCE DESIGN BETWEEN PURE WATER OUTLET AND DRAIN WATER OUTLET



HOUSING 100% PURE RAW MATERIAL INJECTION

HOUSING BEFORE SHIPMENT ALL PASS 100% LEAKING TEST

HOUSING QUALITY CONTROL

Specification
Model No. Specification Q'TY/CTN Weight (Kgs) Cu'ft
HM-253(1/8") 1/8"NPT POLYPROPYLENE WHITE CAP, HOUSING LENGTH:327MM,INLET 1/8"NPT (DRAIN &PERMEATE) 35 10.6 2.1
HM-253(1/4") 1/4"NPT POLYPROPYLENE WHITE CAP, HOUSING LENGTH:327MM,INLET 1/8"NPT (DRAIN &PERMEATE) 35 10.6 2.1
HM-253EZ 1/4"E-Z QUICK CONNECT POLYPROPYLENE WHITE CAP, HOUSING LENGTH:327MM,INLET 1/4"E-Z QUICK CONNECT  (DRAIN &PERMEATE) 35 10.6 2.1



Material : P.P. = Polypropylene(White housing)
