5 or 10 inch Water Filter Housing (HE-UNR Type)

Item No:HE1012WW-UNR

SHARE:

  1. 5" & 10" Polypropylene housing1/2" & 3/4" RIB round white cap
  2. Double O-ring
  3. With Pressure release device
  4. Material:Polypropylene
  5. Weight:740g
Color
Dim.
Quantity
-
+
Min. order>pcs
Request
Feature

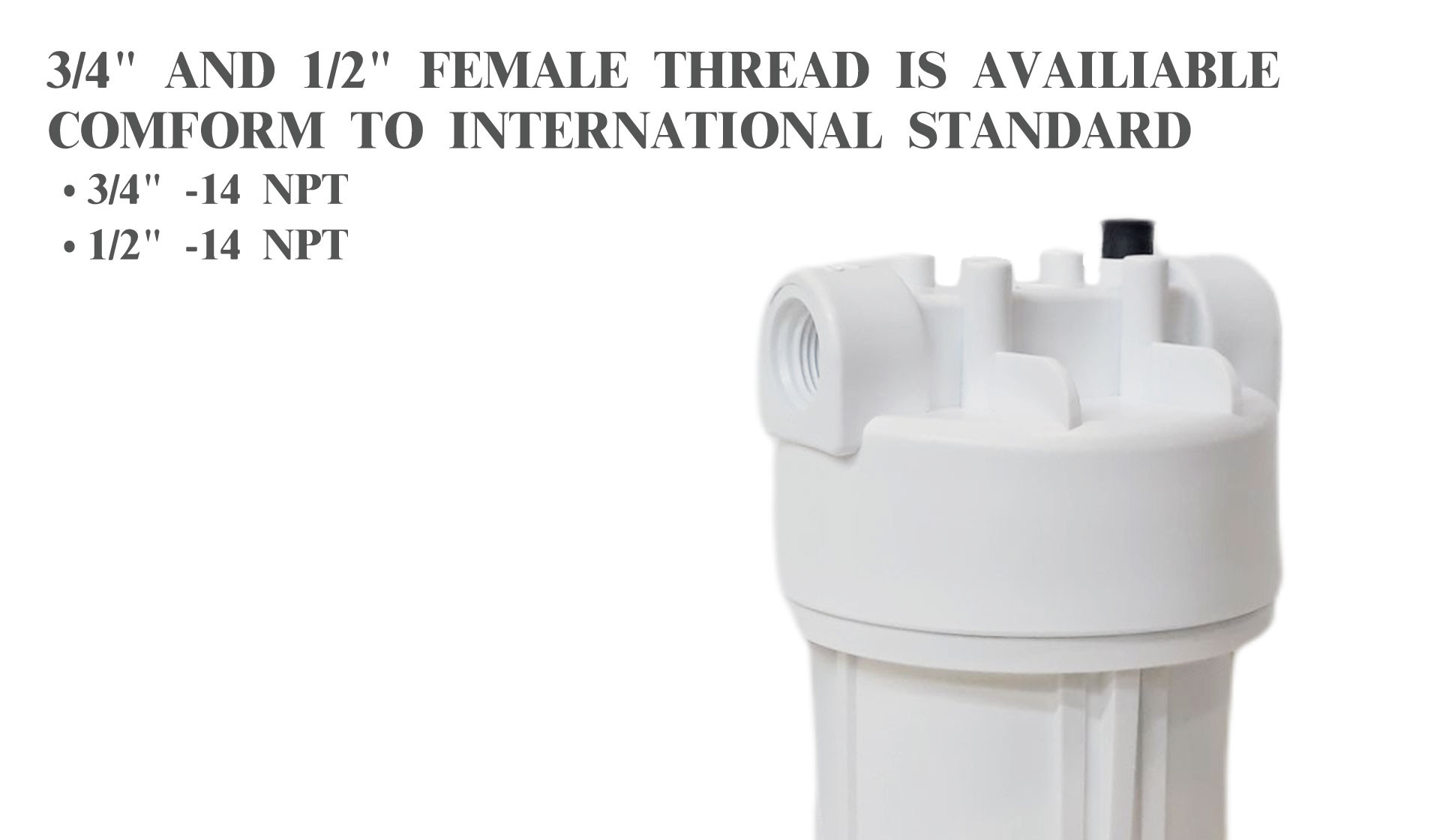

  1. 1/2" Female thread is comform to the international standard 1/2"-18 teeth measurement
  2. 100% pure raw material injection
  3. PP white housing have been done 100,000times strict cycle test under 150PSI high water pressure. (conform to NSF test criteria)
  4. Made in Taiwan
Specification
Model No. Specification Q'TY/CTN Weight (Kgs) Cu'ft
HE1012CW-UNR 10" AS CLEAR HOUSING, 1/2" WHITE RIB ROUND CAP, WITH PRESSURE RELEASE DEVICE 12 11.7 2.1
HE1012WW-UNR 10" PP WHTE HOUSING, 1/2" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11 2.1
HE1034CW-UNR 10" AS CLEAR HOUSING, 3/4" WHITE RIB ROUND CAP, WITH PRESSURE RELEASE DEVICE 12 11.5 2
HE1034WW-UNR 10" PP WHTE HOUSING, 3/4" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11.5 2
HE0512WW-UNR 5" PP WHITE HOUSING, 1/2" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11 2
HE0534WW-UNR 5" PP WHITE HOUSING, 3/4" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11 2

Material : P.P. = Polypropylene(White housing)
                 A.S. = Acrylonitrile styrene(Clear housing)

Certificates
