QUICK CHANGE FILTER R.O.

Item No:ROQ-3405

SHARE:

  • Patented quick change filter design
  • Five stages filter cartridges
  • Without booster pump
  • With shut-off valve
  • In-line filter, R.O. membrane, drinking faucet and storage tank are all certified with NSF
  • Capacity: 50 GPD
  • Waste water ratio: 1:3
  • Flow rate : 1.5liter/min
  • Applicable Pressure:50~80PSI
Color
Dim.
L38.6xW14.5xH39.2(cm)
Quantity
-
+
Min. order>pcs
Request
Feature
  1. Quick change filter design, easy to replace the filter cartridge
  2. EZ quick connect connector design, easy to install and replace fittings
  3. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak
  4. Powder coating metal bracket to avoid get rusty
  5. The system passed 100,000 times cycle test under 150 PSI water pressure
  6. Functional components also passed cycle and burst test which conform to NSF test protocol
  7. Water contact components are produced with all raw materials
  8. 100% leak test before delivery
  9. Made in Taiwan
Specification
Model No. Filter quantity WATER FILTER Weight (incl. tank) Cu'ft
ROQ-3404 4 STAGES Quick Change Filters 4 kgs 0.78 cu.ft
ROQ-3405 5 STAGES AIC-10 4.5 kgs 1 cu.ft



Cartridges:

Stage Model No. Media Function
1st QCC-10P PP sediment, 5 µ Remove dirt, sand and other sediment
2nd QCC-10C Carbon Block Reduce chlorine, taste & odor
3rd QCC-10P PP sediment, 1 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water


Assembly

Spare parts Model No. Spec.
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Quarter-turned spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
Wrench HAN-01W Plastic White
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco


Package

Carton box type Package
Export standard carton  box System and tank are packed seperated


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 500PCS
40ft 2,385 CU'FT 1040PCS
40'HQ 2,690 CU'FT 1200PCS


Others

  1. Quick-fitting type system is optional
  2. Manual flush valve is optional
Certificates

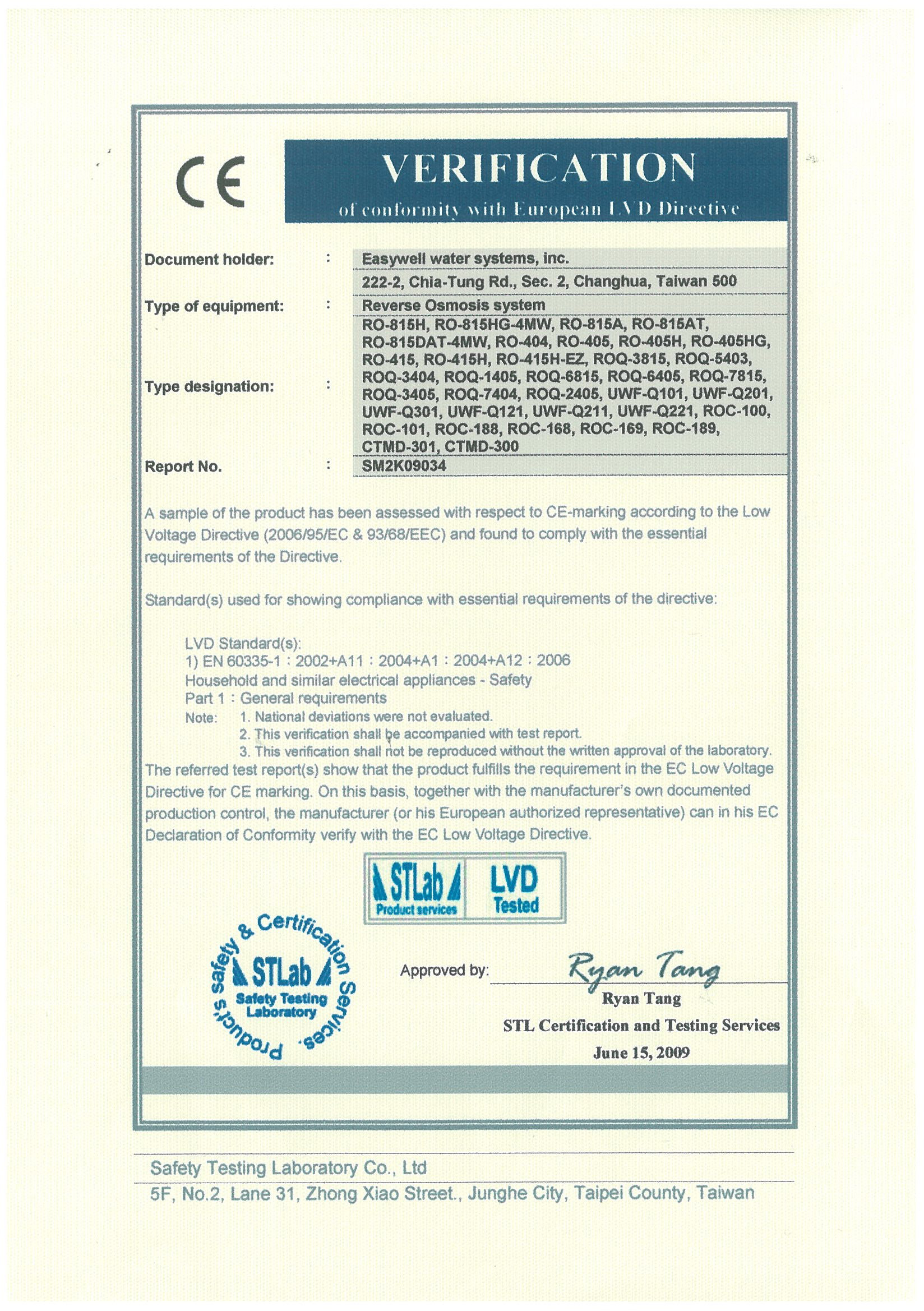

  Verification Of Conformity With European LVD Directive-(ROQ-3405)
