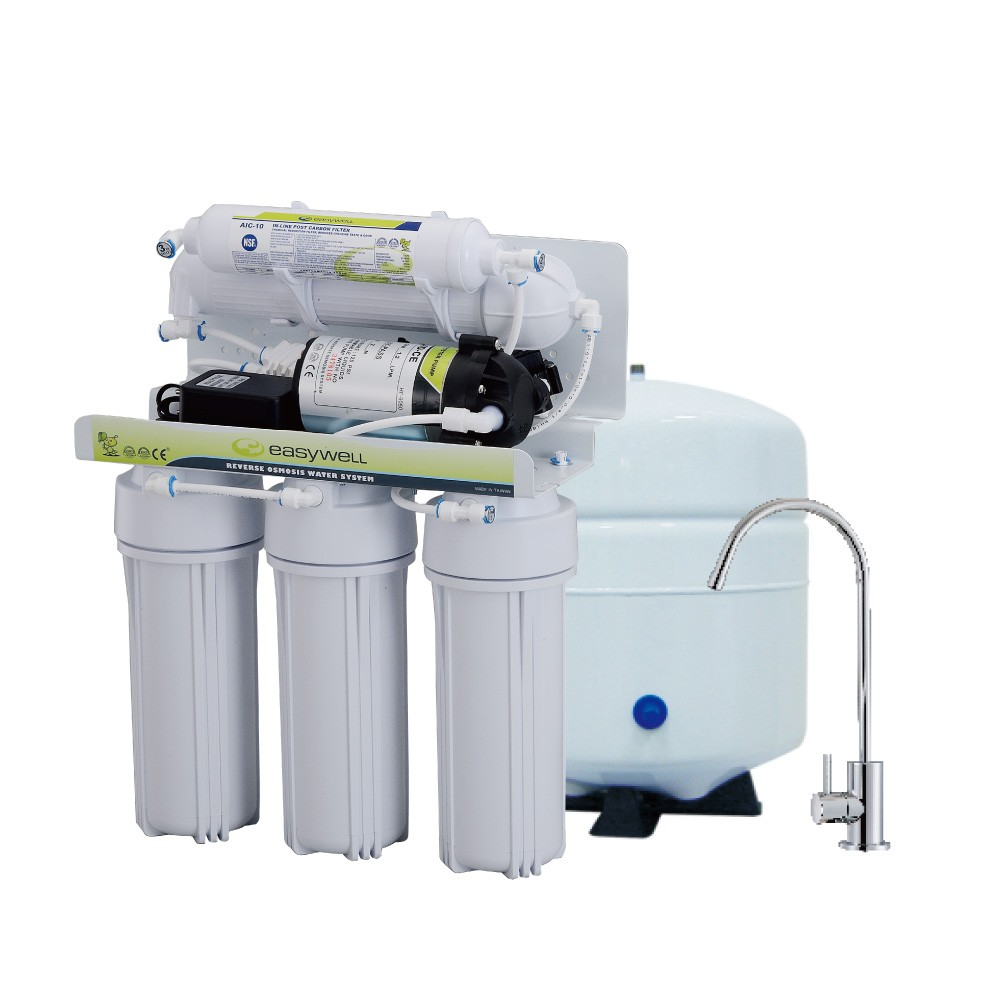

RESIDENTIAL R.O.

Item No:RO-815

SHARE:

  • Five stages filter cartridges
  • With booster pump & transformer (110V or 220V 24VDC)
  • With solenoid valve
  • In-line filter, R.O. membrane, drinking faucet and storage tank are all certified with NSF
  • Capacity:  50 GPD
  • Waste water ratio: 1:3
  • Flow rate : 1.5 liter/min
  • Applicable Pressure: ≦50PSI
Color
Dim.
L37xW19xH46(cm)
Quantity
-
+
Min. order>pcs
Request
Feature

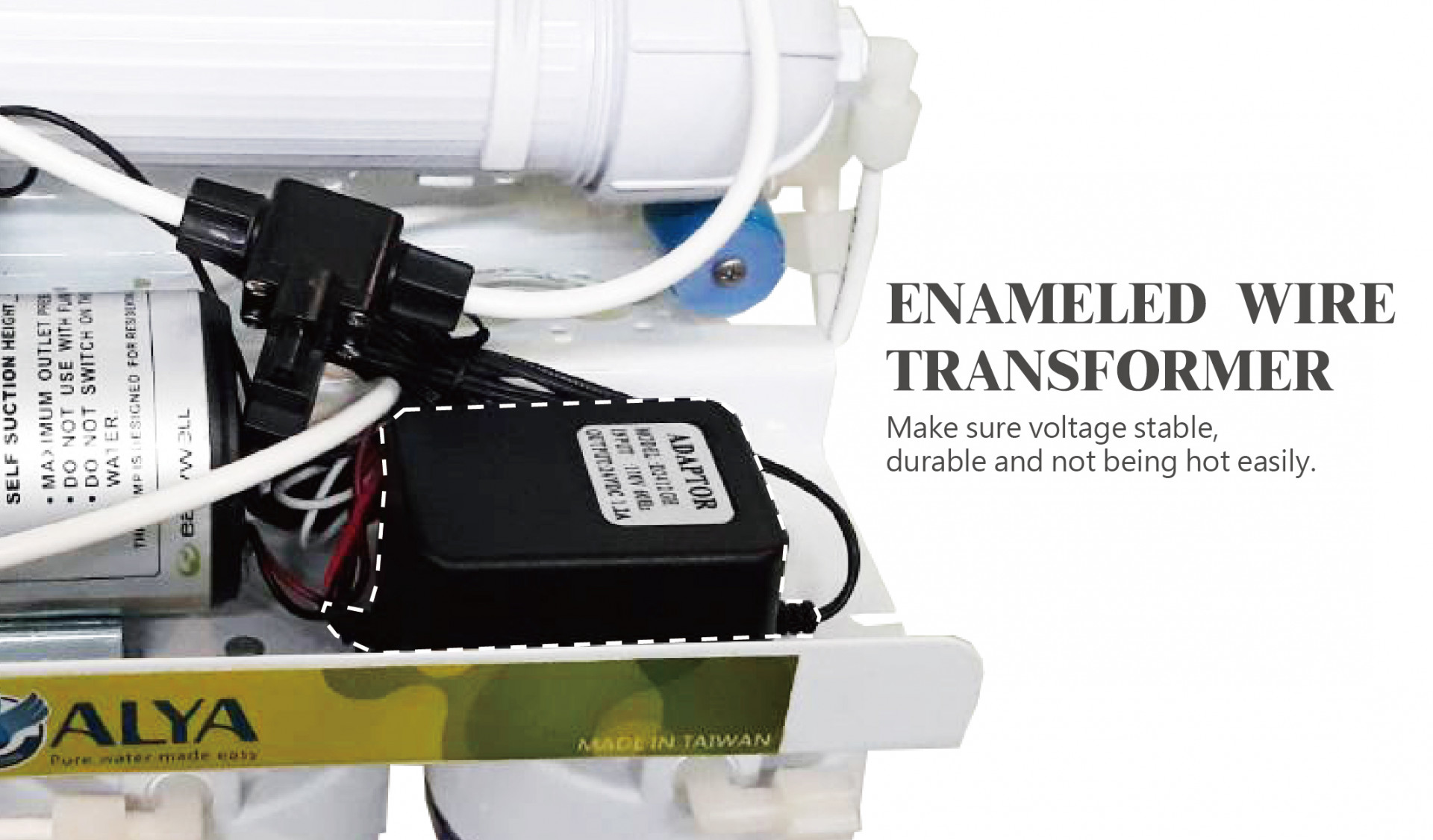

  1. Using magnet wired transformer to stabilize voltage, ensure durability and keep from overheating

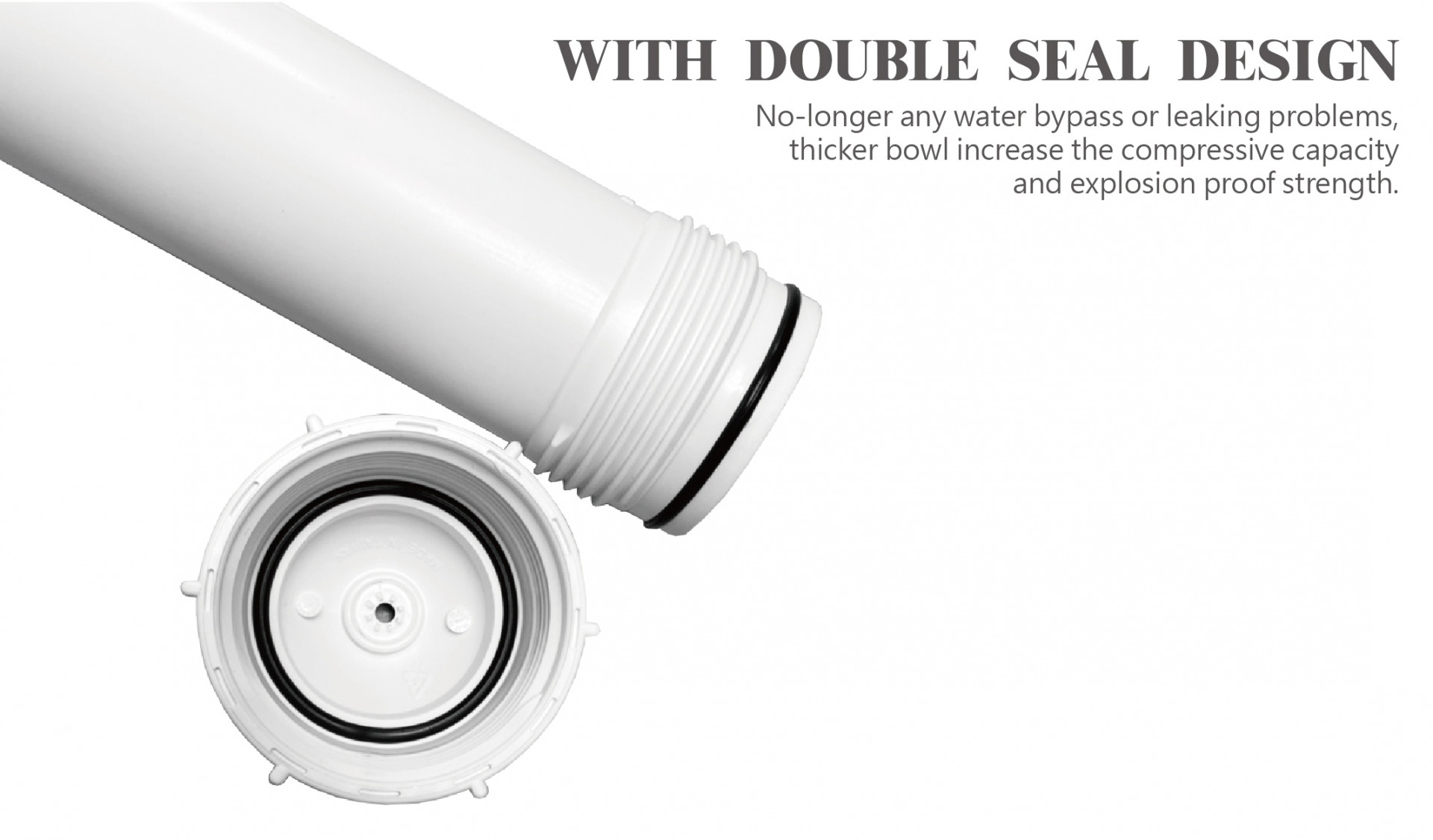

  2. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak
  3. Powder coating metal bracket to avoid get rusty
  4. The system passed 100,000 times cycle test under 150 PSI water pressure
  5. Functional components also passed cycle and burst test which conform to NSF test protocol
  6. Water contact components are produced with all raw materials
  7. 100% leak test before delivery
  8. Made in Taiwan



Specification
Model No. Fitting Type flush valve Weight (incl. tank) Cu'ft
RO-815 JACO NO 17kgs 2.9 cu.ft
RO-815E Quick fitting (E-Z) NO 17kgs 2.9 cu.ft
RO-815H JACO Manual flush  17kgs 2.9 cu.ft



Cartridges:

Stage Model No. Media Function
1st PP10-05 PP sediment, 5 µ Remove dirt, sand and other sediment
2nd CBC-5CTO Carbon Block Reduce chlorine, taste & odor
3rd PP10-01 PP sediment, 1 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water



Assembly

Spare parts Model No. Spec.
Housing HE1014WW-O 10" White bowl, with white cap 1/4" NPT
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Tall reach spout, 3" shank, lead-free
Drinking faucet FRB-450 bead type, 450ml, green color
PUMP PUMP-5024DC 50 GPD, 24VDC
VOLTAGE TRAN-22024DC 220/24VDC,1.2A, ROUND PLUG



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 11/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
Wrench HAN-01W Plastic White
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco



Package

Carton box type Packing
Standard Export Carton System and tank are packed together


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 320PCS
40ft 2,385 CU'FT 650PCS
40'HQ 2,690 CU'FT 750PCS


Others

    ■ Quick-fitting type system is optional
    ■ Manual flush valve is optional

Certificates
  Verification Of Conformity With European LVD Directive-(RO-815)
