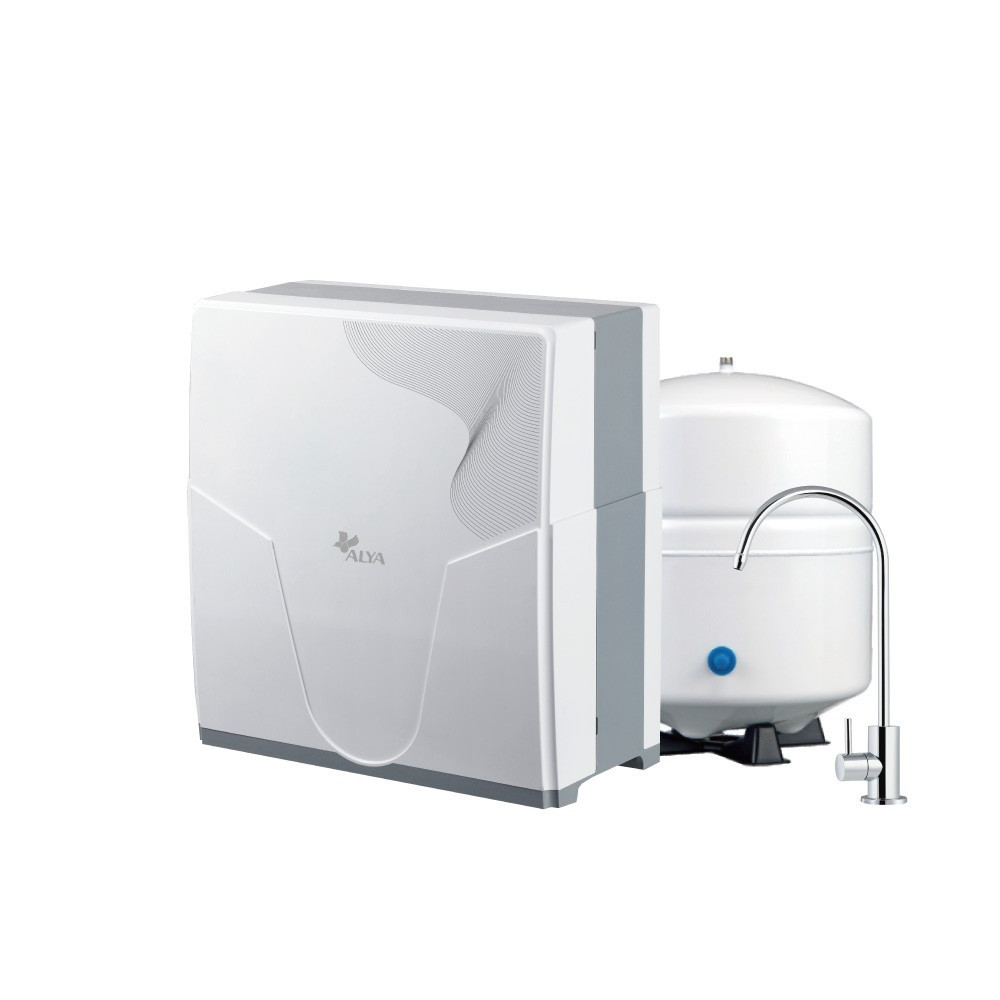

COMPACT R.O.

Item No:RO-700

SHARE:

  • Under-sink type
  • Five stages filter cartridges
  • With booster pump/transformer(110V or 220V 24VDC)
  • With shut-off valve
  • Capacity: 50gallons per day
  • Waste water ratio: 1:3
  • Flow rate : 1.5liter/min
  • Applicable Pressure: ≦50PSI
Dim.
L38xW19xH41 (cm)
Quantity
-
+
Min. order>pcs
Request
Feature
  1. ABS material compact casing designed to prevent rusting. Easy to disassemble the casing which also can effectively block mosquitoes and dust
  2. Using magnet wired transformer to stabilize voltage, ensure durability and keep from overheating
  3. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak
  4. The system passed 100,000 times cycle test under 150 PSI water pressure
  5. Functional components also passed cycle and burst test which conform to NSF test protocol
  6. Water contact components are produced with all raw materials
  7. 100% leak test before delivery
  8. Made in Taiwan

Specification
Model No. Fitting Type Weight (incl. tank) Cu'ft
RO-700 JACO 11kgs 2.5 cu.ft

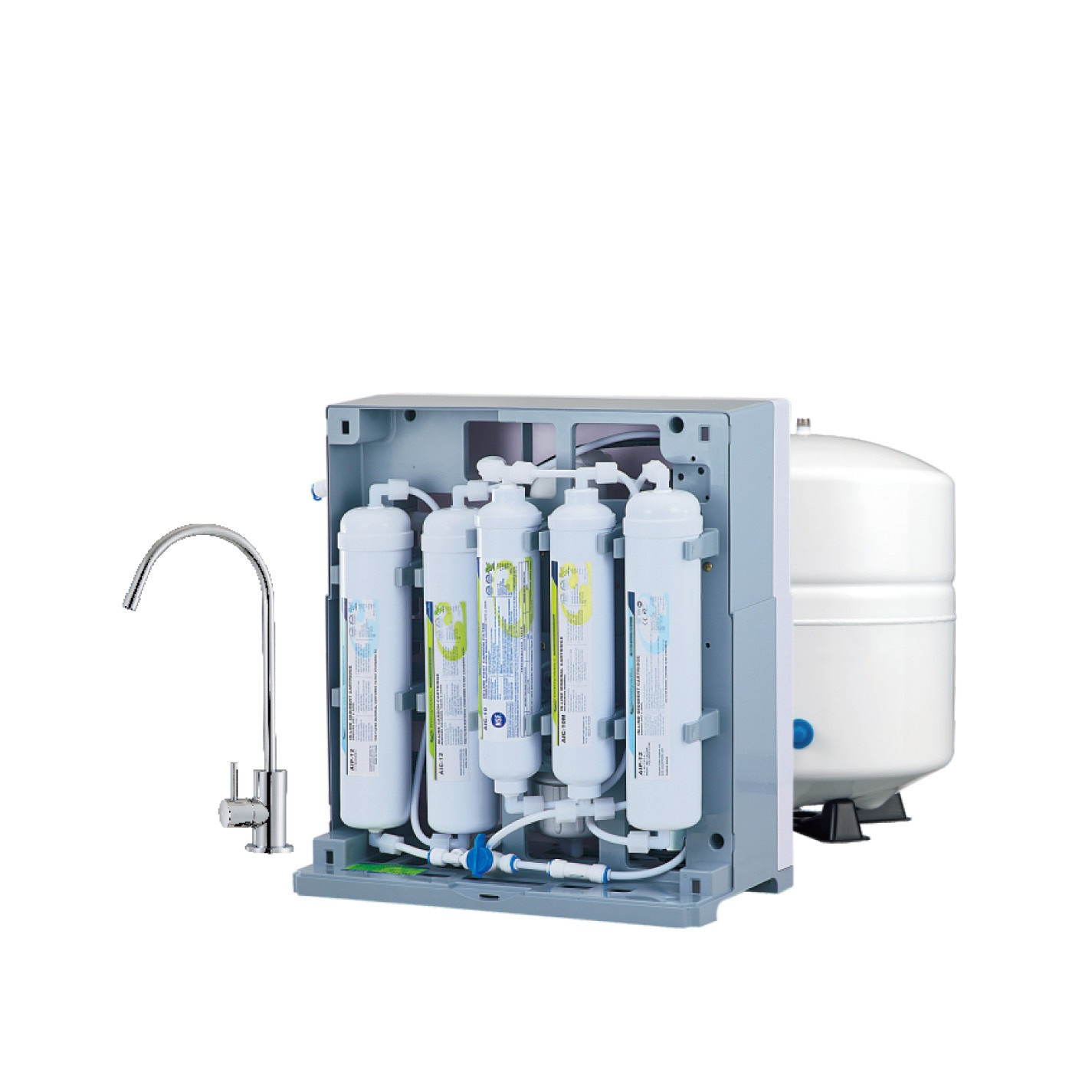

Cartridges:

Stage Model No. Media Function
1st AIP-12 11" ,PP sediment, 5 µ Remove dirt, sand and other sediment
2nd AIC-10 10", Carbon Block Redcue chlorine, taste & odor
3rd AIP-12 11" ,PP sediment, 5 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water
6th AIC-10M Mineral stone Mineralize drinking water




Assembly

Spare parts Model No. Spec.
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Quarter-turned spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color
PUMP PUMP-5024DC 50 GPD, 24VDC
VOLTAGE TRAN-22024DC 220/24VDC,1.2A, ROUND PLUG



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco


Package

Carton box type Package
Export standard carton box System and tank are packed seperated


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 300PCS
40ft 2,385 CU'FT 610PCS
40'HQ 2,690 CU'FT 700PCS



Others

■   Quick-fitting type system is optional
■   Manual mixing valve is optional

Certificates
  Taiwan Excellence Award 2016-(RO-700)
